What is Lidar?

Lidar, which stands for Light Detection and Ranging, is a remote sensing technology that measures distance by illuminating a target with a laser and analyzing the reflected light.

a 3d lidar map of mountains

It is similar to radar and sonar, but uses light waves instead of radio or sound waves. Lidar has become increasingly popular in recent years due to its ability to create highly accurate 3D maps of the environment.

Lidar technology has a wide range of applications in various fields, including archaeology, forestry, geology, and oceanography.

Understanding Lidar

car lidar illustration

Lidar, which stands for Light Detection and Ranging, is a remote sensing method that uses light in the form of a pulsed laser to measure distances to objects.

It works by sending out laser pulses and measuring the time it takes for the pulse to bounce back to the sensor. By doing this, Lidar can create 3D maps of the environment, including the shape, size, and position of objects.

Lidar technology has been around for several decades, but it has become increasingly popular in recent years due to its ability to create highly accurate and detailed maps quickly and efficiently.

Lidar is used in a wide range of applications, including surveying, autonomous vehicles, forestry, and archaeology.

One of the key advantages of Lidar is its ability to penetrate dense vegetation and create detailed maps of the underlying terrain.

This makes it particularly useful for applications such as forestry, where Lidar can be used to create detailed maps of tree height, density, and structure.

Another advantage of Lidar is its ability to create highly accurate maps over large areas. This makes it ideal for applications such as surveying, where Lidar can be used to create detailed maps of the terrain and infrastructure over large areas quickly and efficiently.

Components of Lidar

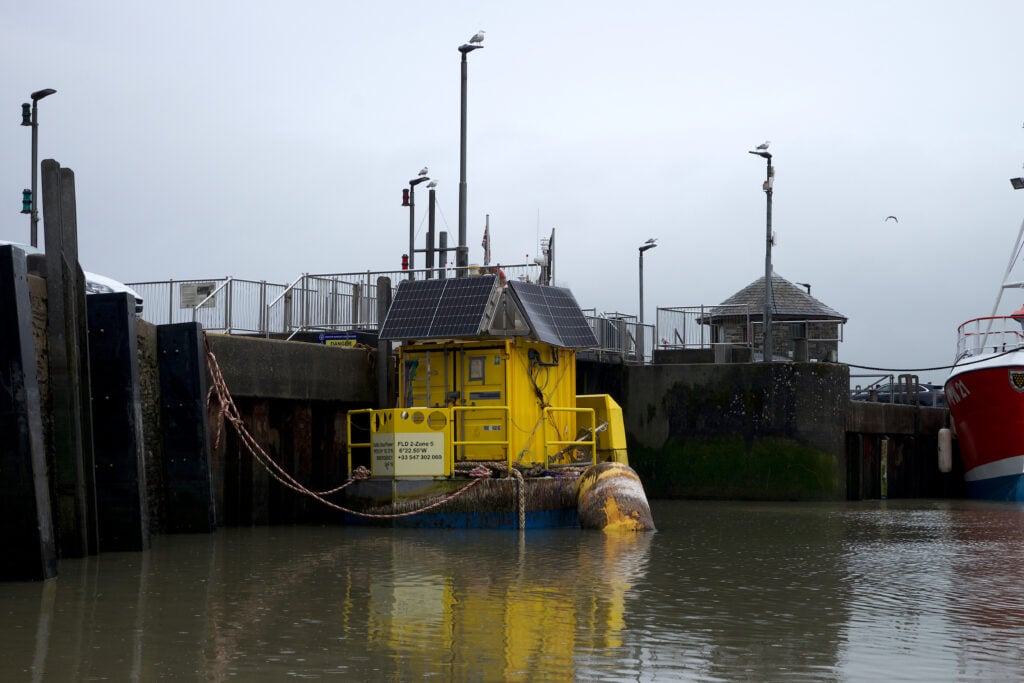

a floating lidar system in england

Lidar systems consist of several components that work together to collect data about the environment. The main components of a lidar system are lidar data, lidar sensors, lidar receiver, inertial measurement unit, and global positioning system.

Lidar Data

Lidar data is the raw data that is collected by the lidar system. It is a 3D point cloud that contains information about the distance and position of objects in the environment.

The data is collected by emitting laser pulses and measuring the time it takes for the pulses to bounce back to the sensor.

Lidar Sensors

Lidar sensors are the devices that emit the laser pulses and measure the time it takes for the pulses to bounce back to the sensor.

There are two types of lidar sensors: scanning and non-scanning. Scanning lidar sensors emit laser pulses in a specific pattern and scan the environment to collect data.

Non-scanning lidar sensors emit laser pulses in a 360-degree pattern and collect data from all directions.

Lidar Receiver

The lidar receiver is the device that receives the laser pulses that bounce back from the environment.

The receiver measures the time it takes for the pulses to return and calculates the distance between the sensor and the object.

Inertial Measurement Unit

The inertial measurement unit (IMU) is a device that measures the acceleration and rotation of the lidar system.

The IMU is used to correct for any movement or vibration of the lidar system during data collection.

Global Positioning System

The global positioning system (GPS) is a device that is used to determine the location of the lidar system. The GPS provides accurate location data that is used to georeference the lidar data.

Working of Lidar

an illustration of airplane lidar over the ocan

Lidar, which stands for Light Detection and Ranging, is a remote sensing technology that uses laser beams to measure the distance between the sensor and a target.

It is commonly used in various applications such as mapping, surveying, and autonomous vehicles. In this section, we will discuss the working of Lidar.

Pulsed Laser

The working of Lidar starts with a pulsed laser, which emits short bursts of laser beams towards the target.

The laser beam is directed towards the target using a scanner or a mirror. The laser beam is usually in the infrared spectrum, but it can also be in the visible spectrum.

Reflected Light

When the laser beam hits the target, it gets reflected back towards the Lidar sensor. The reflected light is then detected by the sensor, which measures the time taken for the light to travel back to the sensor.

The time taken is then used to calculate the distance between the sensor and the target.

Point Clouds

The Lidar sensor can measure the distance to multiple targets at the same time. This results in a 3D point cloud, which is a collection of points in 3D space.

Each point in the point cloud represents a target that was hit by the laser beam.

The point cloud can be used to create a 3D map of the environment. The map can be used for various applications such as autonomous vehicles, forestry, and urban planning.

The point cloud can also be used to extract features such as buildings, trees, and roads.

Lidar Measurements

lidar scanning of terrain

Lidar, or Light Detection and Ranging, is a remote sensing technology that uses lasers to measure distances, elevations, and velocities of objects or surfaces.

It works by emitting a laser pulse and measuring the time it takes for the pulse to bounce back to the sensor after hitting a target.

Lidar measurements are used in a variety of applications, from mapping and surveying to autonomous vehicles and weather forecasting.

Distance Measurement

One of the primary uses of lidar is to measure distances with high accuracy. By measuring the time it takes for a laser pulse to travel to a target and back, lidar sensors can calculate the distance between the sensor and the target.

This distance measurement is commonly used in mapping and surveying applications, as well as in autonomous vehicles for obstacle detection and avoidance.

Elevation Measurement

Lidar can also be used to measure the elevation of a surface or object. By measuring the time it takes for a laser pulse to travel to the ground and back, lidar sensors can calculate the height or altitude of the surface or object.

This elevation measurement is commonly used in topographic mapping, forestry, and urban planning applications.

Velocity Measurement

In addition to distance and elevation measurements, lidar can also be used to measure the velocity of moving objects.

By measuring the Doppler shift of a laser pulse reflected off a moving object, lidar sensors can calculate the speed and direction of the object.

This velocity measurement is commonly used in traffic monitoring, atmospheric research, and wind energy applications.

Applications of Lidar

a lidar map

Lidar is a versatile technology that has a wide range of applications in various fields. Some of the most common applications of Lidar include surveying and mapping, forestry, meteorology, archaeology, geology, agriculture, mining, and autonomous vehicles.

Surveying and Mapping

Lidar is widely used in surveying and mapping applications due to its high accuracy and ability to capture detailed data.

Lidar can be used to create high-resolution digital elevation models, which are useful for a variety of applications, including urban planning, land management, and infrastructure design.

Forestry

Lidar is also used in forestry applications to gather detailed information about forests and vegetation. By measuring the height and density of trees, Lidar can help forest managers to monitor forest health and plan for sustainable forestry practices.

Lidar data can also be used to create accurate forest inventories, which are important for managing forest resources.

Meteorology

Lidar is used in meteorology to measure atmospheric conditions and study weather patterns. Lidar can be used to measure wind speed and direction, as well as the concentration of pollutants and other atmospheric particles.

This data can be used to improve weather forecasting and air quality monitoring.

Archaeology

Lidar is also used in archaeology to study historical sites and landscapes. By creating detailed 3D models of archaeological sites, Lidar can help archaeologists to identify and map features that may not be visible on the surface.

This can provide valuable insights into the history and development of a site.

Geology

Lidar is used in geology to study the earth’s surface and geological formations. By measuring the height and shape of mountains and other geological features, Lidar can help geologists to better understand the structure and history of the earth’s crust.

Lidar can also be used to study landslides and other geological hazards.

Agriculture

Lidar is used in agriculture to monitor crop health and improve crop yields. By measuring the height and density of crops, Lidar can help farmers to identify areas of the field that may need additional fertilization or irrigation.

Lidar data can also be used to create detailed maps of crop fields, which can help farmers to plan more efficient planting and harvesting strategies.

Mining

Lidar is used in mining to improve safety and efficiency. By creating detailed 3D models of mining sites, Lidar can help miners to identify potential hazards and plan safe mining operations.

Lidar can also be used to monitor mining operations in real-time, which can help to improve efficiency and reduce costs.

Autonomous Vehicles

Lidar is used in autonomous vehicles to provide accurate and reliable data for navigation and obstacle detection.

By using Lidar sensors, autonomous vehicles can create detailed 3D maps of their surroundings, which can be used to navigate complex environments and avoid obstacles.

Lidar is an important technology for self-driving cars and other autonomous vehicles.

Lidar Products and Services

an illustration of satellite lidar over the ocean

Lidar technology has become increasingly popular in recent years, and as a result, there has been a growth in the number of Lidar products and services available on the market.

These products and services are designed to meet the needs of a wide range of industries, including surveying and mapping, forestry, agriculture, and engineering.

Lidar products typically include hardware and software components that work together to capture and process Lidar data.

Some of the most common Lidar products include airborne Lidar systems, mobile Lidar systems, and terrestrial Lidar systems. Airborne Lidar systems are typically used for large-scale mapping projects, while mobile Lidar systems are ideal for capturing data in urban environments.

Terrestrial Lidar systems are used for capturing data in areas that are difficult to access.

Lidar services, on the other hand, are typically provided by companies that specialize in Lidar data processing and analysis. These services can include data acquisition, data processing, and data analysis.

Lidar service providers can also offer consulting services to help their clients understand how to best use Lidar data to achieve their goals.

In addition to the hardware and software components, Lidar products and services can also include training and support. Many companies that offer Lidar products and services provide training to their clients to ensure that they are able to use the technology effectively.

They may also offer technical support to help their clients troubleshoot any issues that they encounter.

Advanced Lidar Concepts

3d lidar map of the ocean floor and underwater mountains

Advanced Lidar Concepts refer to the development of new Lidar technologies and techniques that can be used to enhance the capabilities of existing Lidar systems.

These concepts are being researched and developed to improve the accuracy, resolution, and range of Lidar systems, as well as to reduce their size, weight, and power consumption.

Digital Elevation Models

One of the most important applications of Lidar technology is the creation of Digital Elevation Models (DEMs). DEMs are 3D models that represent the surface of the Earth, and they are used in a variety of applications, including land use planning, flood risk management, and geological mapping.

Lidar is particularly well-suited to creating high-resolution DEMs, as it can accurately measure the elevation of the ground and vegetation cover.

Lidar in Atmospheric Studies

Lidar is also used in atmospheric studies to measure the properties of clouds, cloud cover, rain, rain droplets, and aerosols.

Lidar systems can provide detailed information about the size, shape, and distribution of these atmospheric particles, which can be used to improve weather forecasting, climate modeling, and air quality monitoring.

Bathymetric Lidar

Bathymetric Lidar is a specialized type of Lidar that is used to map the seafloor. It works by measuring the time it takes for a laser pulse to travel from the Lidar system to the seafloor and back again.

This information can be used to create high-resolution maps of the seafloor, which are used in a variety of applications, including marine navigation, oil and gas exploration, and environmental studies.

Future of Lidar

rendering of a drone with lidar capabilities

Lidar technology is evolving rapidly and has a bright future ahead. The potential applications of Lidar are vast and diverse, ranging from environmental monitoring to autonomous driving.

Here are some of the most promising future developments in Lidar technology:

Miniaturization

One of the most exciting prospects for Lidar technology is miniaturization. As Lidar sensors become smaller and lighter, they will be easier to integrate into a wider range of devices, from drones to smartphones.

This will make Lidar more accessible and affordable for a wider range of applications, including consumer electronics.

Increased Range and Resolution

As Lidar technology advances, it is likely that we will see increased range and resolution. This will allow Lidar sensors to capture more detailed and accurate data, making them even more useful for applications such as autonomous driving and environmental monitoring.

Integration with Other Technologies

Lidar technology is already being integrated with other technologies, such as cameras and radar, to provide even more comprehensive data.

In the future, we can expect to see even more integration with other technologies, such as machine learning and artificial intelligence. This will allow Lidar to provide even more advanced and sophisticated data analysis.

New Applications

As Lidar technology continues to evolve, we can expect to see new and innovative applications emerging.

For example, Lidar could be used to monitor the structural health of buildings or to detect underground utilities. The possibilities are endless, and it is likely that we have only scratched the surface of what Lidar can do.

Frequently Asked Questions

How does LiDAR work?

LiDAR stands for Light Detection and Ranging. It works by emitting laser pulses towards a target and measuring the time it takes for the light to bounce back to the sensor.

The sensor then calculates the distance to the target based on the time it took for the light to return. By repeating this process thousands of times per second, LiDAR can create a highly detailed 3D map of the target area.

What are some common LiDAR applications?

LiDAR is commonly used in a variety of applications, including:

  • Mapping and surveying terrain
  • Monitoring and managing forests
  • Navigation and obstacle avoidance in autonomous vehicles
  • Archaeological research and cultural heritage preservation
  • Urban planning and infrastructure management
  • Floodplain mapping and management

What are the advantages of LiDAR compared to other sensing technologies?

LiDAR has several advantages over other sensing technologies, including:

  • High accuracy and precision
  • Ability to penetrate vegetation and other obstructions
  • Ability to capture highly detailed 3D data
  • Ability to operate in a wide range of lighting and weather conditions

How accurate is LiDAR data?

LiDAR data can be extremely accurate, with vertical accuracy typically ranging from a few centimeters to a few decimeters, depending on the sensor and application.

Horizontal accuracy can also be very high, with errors typically ranging from a few centimeters to a few meters.

What are some limitations of LiDAR?

Despite its many advantages, LiDAR also has some limitations that need to be taken into account, including:

  • High cost compared to other sensing technologies
  • Limited range and field of view
  • Limited ability to penetrate water and other highly reflective surfaces
  • Limited ability to distinguish between different types of vegetation and ground cover

How is LiDAR being used in autonomous vehicles?

LiDAR is a critical component of many autonomous vehicle systems, providing detailed 3D maps of the surrounding environment that can be used for navigation and obstacle avoidance.

LiDAR sensors are typically mounted on the roof or other high points of the vehicle, and they use multiple laser beams to scan the environment in all directions.

By combining LiDAR data with other sensor data, such as radar and cameras, autonomous vehicles can safely navigate complex environments and avoid collisions with other vehicles, pedestrians, and obstacles.
